2011 SUZUKI KingQuad 750AXi Power Steering ATV wallpapers

ATV Wallpapers, specifications, accident lawyers and insurance information.

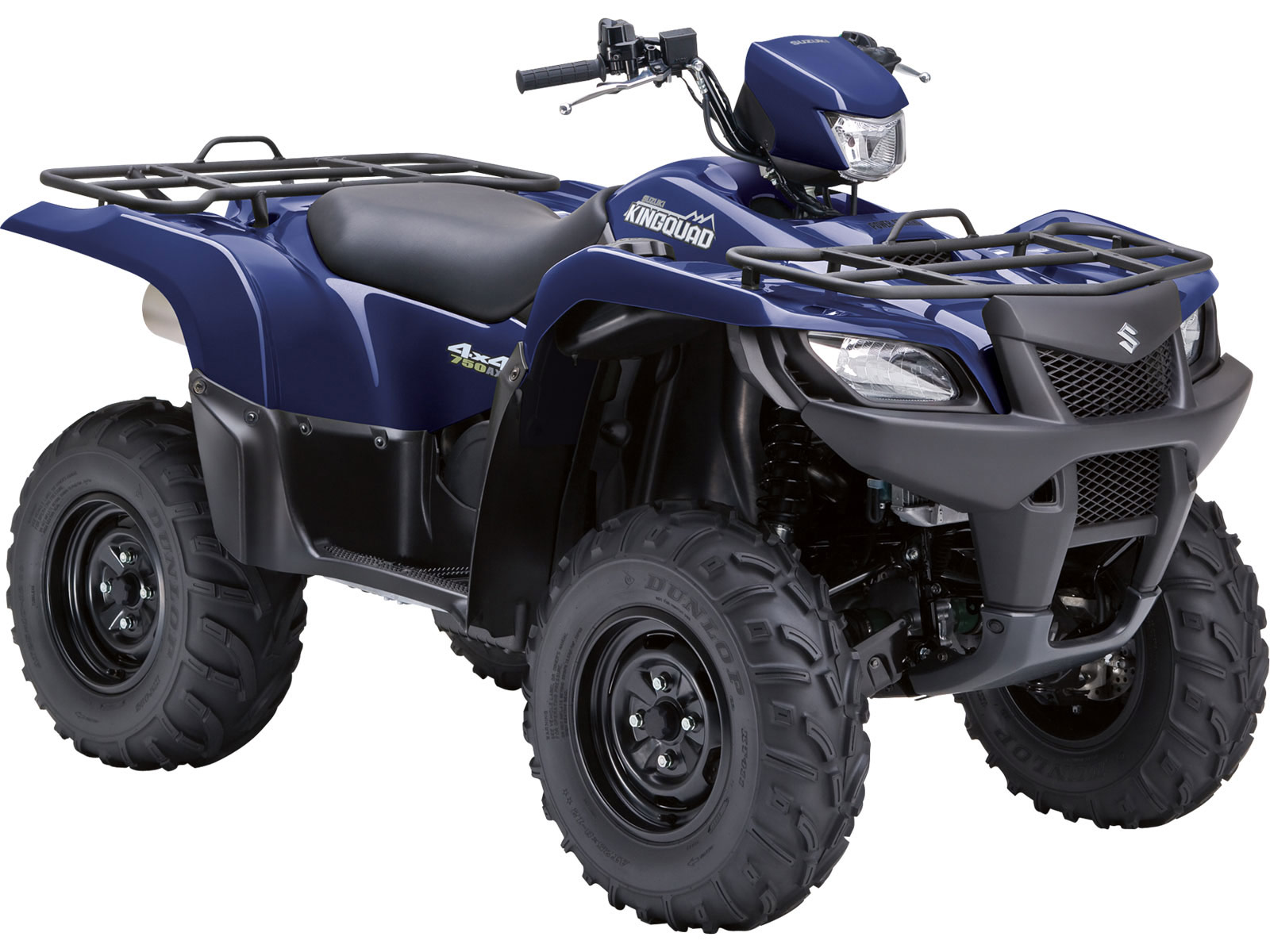

2011 SUZUKI KingQuad 750AXi Power Steering
Click Thumbnail to download (size 1600 x 1200 pixels)




The 2011 Suzuki KingQuad 750AXi Power Steering is engineered to tackle the toughest jobs and nastiest trails without breaking a sweat. It’s loaded with technologically advanced features for impressive all-around performance: its advanced power steering provides lighter steering and more responsive handling; the fuel-injected
722cc engine, housed inside the high-tensile steel frame, develops abundant torque (especially in the low- to mid-rpm range), which gives the 750AXi Power Steering exceptional performance. Independent rear suspension, a locking front differential and a host of other valuable features place the KingQuad 750AXi Power Steering at the front of the pack.

New for 2011: Champion Yellow and Great Blue color scheme; also available in White and Black; black rims (on Great Blue, Champion Yellow and White models); silver rims (on Black and White models)

Specifications

MSRP $9,049 USD

Brakes Front Disc brake, twin
Brakes Rear Sealed oil-bathed multi-disc
Color Champion Yellow, Great Blue, Black and White
Curb Weight 305 kg (672 lbs)
Final Drive Shaft drive
Fuel Tank Capacity 17.5 L (4.6/3.8 US/Imp gal)
Ground Clearance 260 mm (10.2 in)
Overall Length 2115 mm (83.3 in)
Overall Width 1210 mm (47.6 in)
Seat Height 920 mm (36.2 in)
Suspension Front Independent, double A-Arm, coil spring, oil damped
Suspension Rear Fully independent A-Arm and I-Beam rear suspension with five-way preload-adjustable shock absorbers
Tires Front AT25 × 8-12, tubeless
Tires Rear AT25 × 10-12, tubeless
Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
Wheelbase 1285 mm (50.6in)
Engine:
Bore Stroke 104.0 mm (4.094 in) x 85.0 mm (3.346 in)
Compression Ratio 10.0 : 1
Engine 722cc (44.1 cu. in), 4-stroke, liquid-cooled, DOHC
Fuel System Suzuki Fuel injection
Ignition Electronic ignition (CDI)
Lubrication Wet Sump
Starter Electric starter

Warranty:
Warranty 12 month limited warranty.

2011 Suzuki KingQuad 750AXi Power Steering Features:

New Colors! – Champion Yellow, Great Blue, Black, White.

Key Features
Compact and lightweight electric power steering, positioned high on the vehicle to help avoid water and debris, delivers lighter steering in a variety of conditions to help reduce rider fatigue.

Suzuki fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts.

Engine Features
722cc liquid-cooled DOHC 4-valve fuel-injected engine tuned to deliver a mighty low-to-mid range torque along with a powerful high-rpm output.

Lightweight aluminum cylinder bore is electro-plated with Suzuki's own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.

Cylinder canted forward 48 degrees for lower center of gravity, reduced engine height and lower seat height, and is rubber mounted with two balancer shafts for smooth performance.

Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency – includes lightweight magnesium valve cover

Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height.

The rubber-mounted engine uses two balancer shafts to keep the powerful ride smooth.

Ultra-efficient air filter has both paper (for superior filtration) and foam (easily cleaned and re-used) elements for better durability and less maintenance.

Transmission Features
QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse.

Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort. A differential-lock system provides serious four-wheel-drive traction.

Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.

Advanced engine brake system minimizes free-wheeling to reduce downhill speed.

Chassis Features
High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride.

Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment

Fully independent, A-arm and I-beam rear suspension with long suspension travel (7.7 inches of wheel travel), includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.

Large, 200mm diameter front disc brakes with single-piston calipers designed for strong, reliable braking performance.

Sealed, multi-plate rear brake system, with a clutch-type design provides high durability, offers reduced unsprung weight, and is low-maintenance.

Pressed-aluminum wheels for reduced unsprung weight (silver wheels on Black and White models; black wheels on Great Blue and Champion Yellow models).

Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support

Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain.

Utility/Convenience Features
Easy-to-read LCD instrument display – includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range.

Distinctively styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light – additional 40W multi-reflector, handlebar-mounted auxiliary light.

High output magneto generator system and 18-amp maintenance-free battery provides extra power.

Large 4.6 gallon fuel tank positioned below seat for a low center-of-gravity – includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge.

A handy storage compartment is mounted on the right-side front fender.

Front and rear cargo racks are covered in a wrinkle-finish black paint for increased durability.

Special
Minimum Age: 16 Years Old.
