2011 KAWASAKI Brute Force 750 4x4i ATV Wallpapers

2011 KAWASAKI Brute Force 750 4x4i
ATV Wallpapers

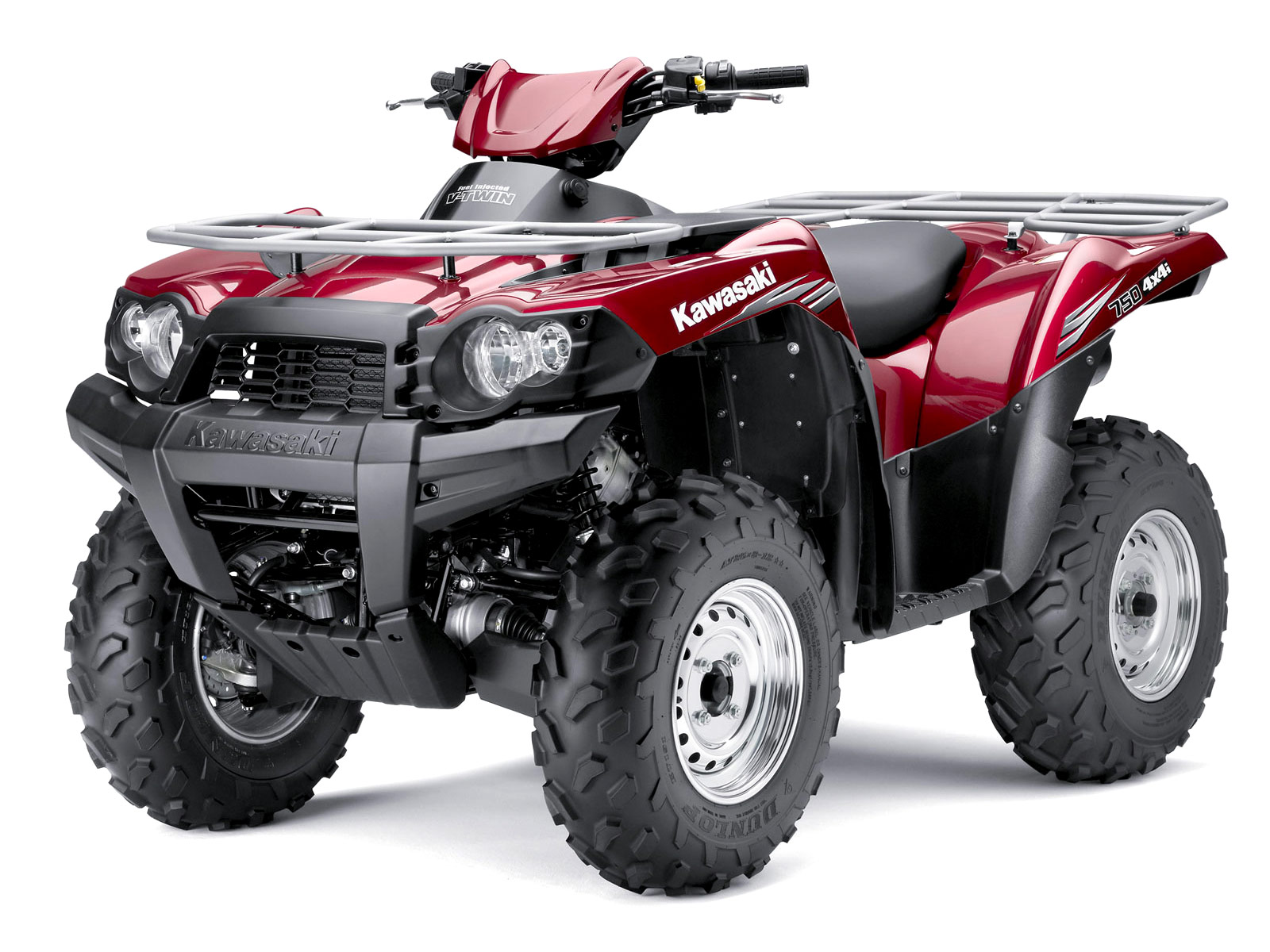

2011 KAWASAKI Brute Force 750 4x4i

Click Thumbnail to download (size 1600 x 1200 pixels)

Key Features

Fuel-injected 90-degree 749cc V-twin engine
• Digital fuel injection provides the perfect delivery throughout the rpm range with fast throttle response
• 36mm throttle bodies are controlled by a 32-bit CPU, which monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle to help ensure the perfect air/fuel mixture
• Low spring rate for the throttle return springs and ball bearing-equipped throttle bodies reduce friction and throttle action
• High-pressure fuel pump located inside tank
• Aluminum cylinders are electrofusion-plated for light weight, long wear and excellent heat dispersion
• Highly efficient and compact rare-earth magnets in the generator help contribute to reduced engine width
• Engine can be started in any gear when a brake is applied
• Access to the air filter requires removing only one cover
• Compact radiator is placed high in the chassis for better protection against mud and debris
• The reservoir cooling hose end is positioned to prevent mud clogging

Transmission and Powertrain
• Fully automatic Kawasaki Automatic Power-drive System (KAPS) continuously variable transmission (CVT) has high and low forward gears plus reverse
• Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits rider to distribute torque equally to front wheels for maximum traction
• Air for the CVT and engine enter from a reverse-facing snorkel located beneath the handlebars to help protect against water and mud
• Rider can select two
• or four-wheel drive operation by pressing a button located on the handlebar
• Cardan joints on drive shafts absorb torque fluctuations and reduce vibration
• Plastic front and rear axle boots provide protection from debris

Chassis
• Double-cradle frame is made of sturdy, tubular steel
• Offers 9.7 inches of ground clearance
• Fitted with pre-routed tubing and mounting brackets for easy winch wiring and installation

Independent Front Suspension
• Double A-arm suspension design includes preload adjustable shocks, and features 6.7 inches of suspension travel for a comfortable ride
• A-arm caster angle provides light steering
• Upper and lower front A-arms utilize a combination of needle bearings and ball joints for smooth suspension action, stability and excellent rider comfort

Independent Rear Suspension
• Double A-arm and preload adjustable shock for each rear wheel provides superior ride comfort and ground following ability
• Lower rear A-arms utilize a combination of needle bearings and ball joints for smooth suspension action, stability and excellent rider comfort
• Independent rear suspension provides 7.9 inches of travel
• Torsion bar helps minimize body roll

Braking
• Dual front disc brakes with two-piston calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power
• Electronically controlled Kawasaki Engine Brake Control helps to slow the ATV under certain conditions

Rugged Bodywork
• High-gloss, scratch-resistant Thermoplastic Olefin (TPO) bodywork stays looking good longer
• Waterproof storage box in the left front fender complements the easy-access storage pocket on the right side
• Bumper design provides an effective handgrip position

Relaxed Cockpit
• Comfortable, upright seating position combines with the independent rear suspension for a plush ride
• Rider comfort is enhanced via soft, yet firm urethane seat foam that provides lasting support for long hours in the saddle
• Automotive-style instruments include digital speedometer, odometer, twin trip meters, clock, hour meter and fuel gauge and are mounted for easy viewing

Additional Features
• Tire and wheel design provides an integrated look with aggressive bodywork as well as superb traction
• Four-bulb 40-watt headlights provide maximum lighting power for nighttime rides
• 12-volt electric outlet helps power accessories
• Aluminum footpegs help keep weight low
• Trailer hitch bracket with 1,250-pound towing capacity is standard equipment.

Specifications
American MSRP $11,799 US

Engine: Liquid-cooled, 90-degree, four-stroke V-twin
Valve system: SOHC, four valves per cylinder
Displacement: 749cc
Starting system: Electric
Bore x Stroke: 85 x 66mm
Compression ratio: 8.8: 1
Fuel Injection: DFI; (2) 36mm Mikuni throttle bodies
Ignition: TCBI with digital advance
Transmission: Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
Final drive: Selectable four-wheel drive with Variable Front Differential Control, shaft
Frame Type: Double-cradle, high tensile tubular steel
Front suspension / wheel travel: Dual A-arm / 6.7 in.
Rear suspension / wheel travel: Fully Independent, dual A-arm / 7.9 in.
Front Tire Size: AT25x8-12
Rear Tire Size: AT25x10-12
Front brakes: Dual hydraulic 200mm discs with 2-piston calipers
Rear Brakes: Sealed, oil-bathed, multi-disc
Overall length: 86.4 in.
Overall width: 45.9 in.
Overall height: 48.5 in.
Wheelbase: 50.6 in.
Ground clearance: 9.7 in.
Seat height: 35.6 in.
Lighting: (4) 40W headlights, 5W taillight, 21W stoplight
Rack capacity, front / rear: 88 / 176 lbs.
Towing capacity: 1,250 lbs.
Curb weight: 652.7 lbs.
Fuel capacity: 5.0 gal.
Instruments: Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4/4x4 indicator, neutral indicator, reverse indicator, low fuel warning light, low oil warning light
Color Choices: Dark Royal Red, Woodsman Green, painted Metallic Ruby Red
Good Times™ Protection Plan: 12, 24, 36 or 48 months
Warranty: 12 Months
